KRONE 237A Module 10 Pair Disconnection Module
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 10 Pair Krone Module | Material | ABS Or PBT |
|---|---|---|---|
| Contact Pin | Silver-plated Phosphor Bronze | Flame Retardance | UL94-V0 Or NOT |
| Application | Telecommunication | Type | Disconnection |
| Highlight | krone connection module,krone disconnection module |
||
You can tick the products you need and communicate with us in the message board.
Product Description

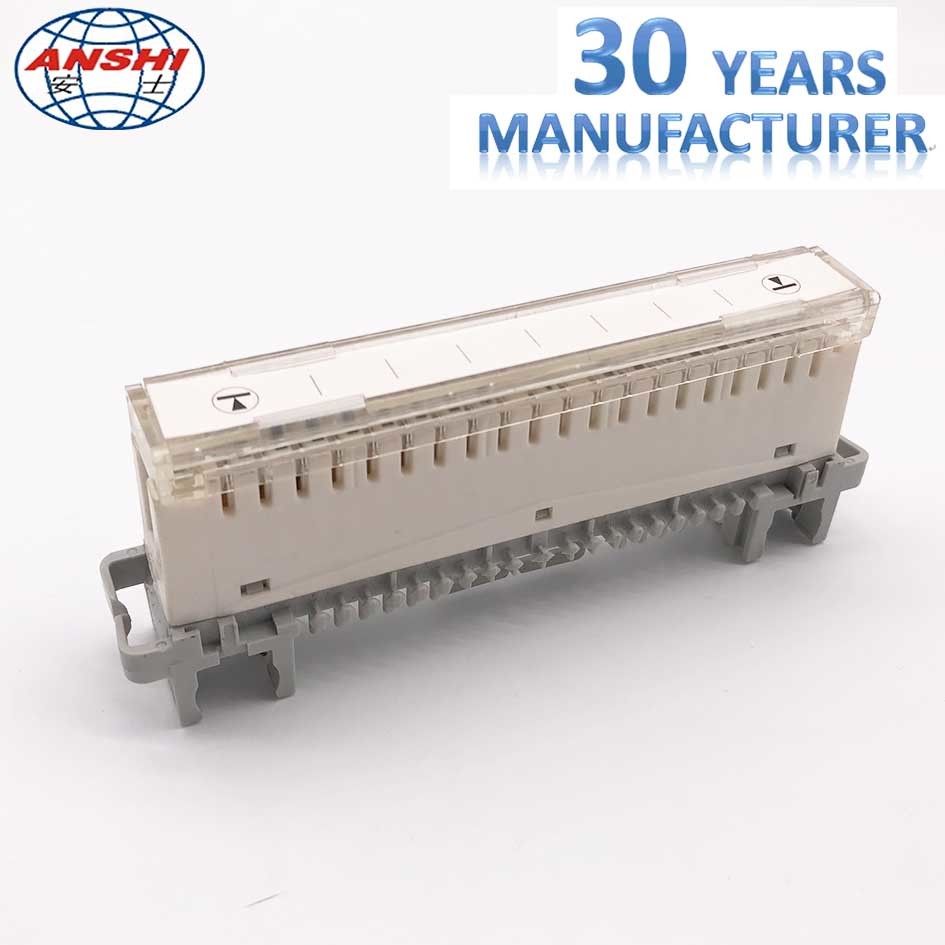

KRONE 237A Module 10 Pair Disconnection Module
KRONE 237A Module 10 Pair Disconnection Module is a high-performance telecommunications component designed for reliable signal distribution and testing.
Key Features
- Operating temperature range: -5°C to 40°C
- Relative humidity tolerance: <85% at +30°C
- Atmospheric pressure range: 70-106KPa
- Premium materials: Stainless steel and cuprum with gold plating over nickel
- Flame-retardant construction: PPT (UL94V-0) or ABS (UL94V-0) compliant with GB/T 5169.7-1985 standard
- Modular design with elegant appearance and high durability
- Minimum pulling-out force: 25N
- Intermediate resistance between reed terminators: ≤7mΩ
- Standard condition intermediate resistance: ≤3mΩ
- Balanced performance impedance: 120Ω
- Data rate: 2Mb/s
- Insulation resistance: 1,000MΩ at 500V DC
- Withstands 1kV DC for 1 minute without breakdown or arcing
- Crosstalk ratio: ≥60dB (50kHz-210MHz)
- Plug-in loss: ≤0.4dB (50kHz-210MHz)
- Back wave loss: ≥18dB (50kHz-210MHz)
- Operational lifespan: 200 cycles
Technical Characteristics

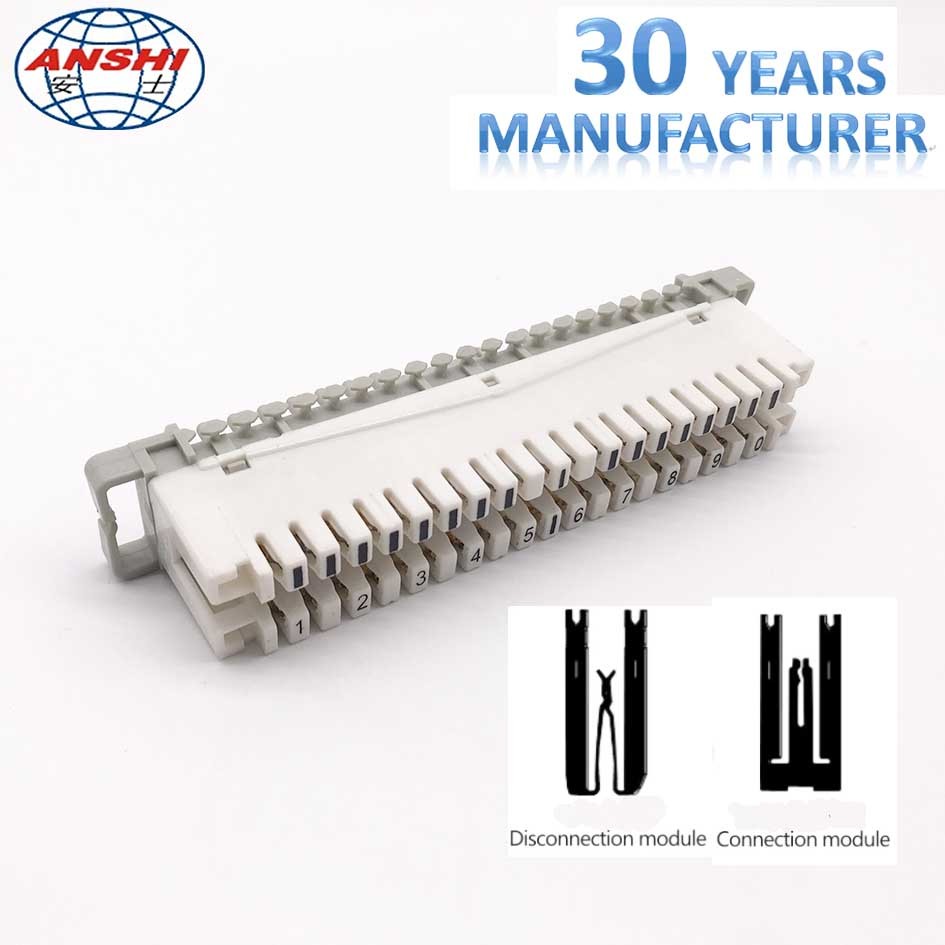

The disconnection type CT module enables testing of electrical parameters on both exchange and distribution sides by inserting a test plug, eliminating the need to disconnect jumper wires or cables from the termination module.
Module housing is constructed with premium imported GE PBT and ABS (UL94V-0) materials. We exclusively use virgin materials (not recycled) to ensure optimal module performance and longevity.
Performance Specifications
| Mechanical Performance | Specifications |
|---|---|
| Insertion Force | 40-75N |
| Pull Out Force | Axial: ≥25N Radial: ≥7.5N |
| IDC Life | 200 cycles minimum (20-26 AWG solid wire) |
| Copper Conductor Diameter | Φ0.4-Φ0.8mm |
| Environment Characteristics | |
| Storage Temperature | -40°C to +70°C |
| Operating Temperature | -10°C to +60°C |
| Relative Humidity | 95%, non-condensing |
| Electrical Performance | |
| Insulation Resistance | ≥1000MΩ |
| Contact Resistance | ≤7mΩ |
| Dielectric Strength | AC 1000Vrms 50/60Hz for 60s |

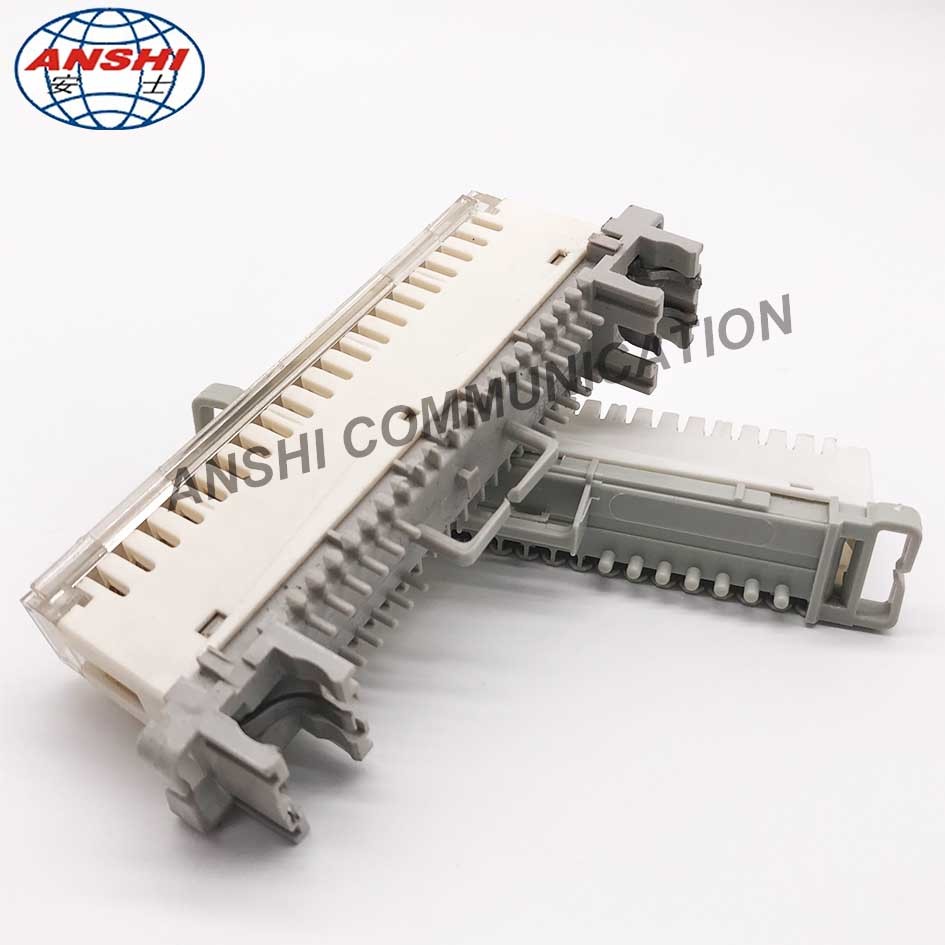

2 Type of Mounting Difference in Image: Back Mount Type & Profile Mount
PACKAGE: 5 PIECES/INNER BAG/ 10 PIECES/INNER BOX 250PCS/CARTON (Professional Export Package)
